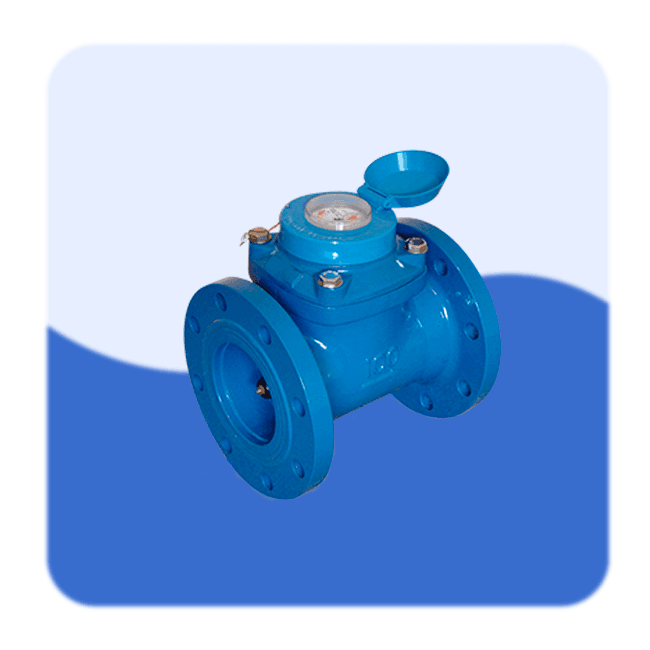

RICELAND – Woltmann-Type Flanged Turbine Meters
- Sizes: 2”, 3”, 4”, 6”, 8”.
- Show totalized (m³) readings only.
- pressure: 10 kg/cm² (≈142 PSI).
- temperature: 50°C.
| Diameter | 2” | 3” | 4” | 6” | 8” |
| Maximum | 8.33 | 22.22 | 33.33 | 83.30 | 138.80 |
| Minimum | 0.125 | 0.33 | 0.50 | 1.25 | 2.08 |
| Nominal | 4.16 | 11.11 | 16.66 | 41.66 | 69.44 |
